NXR-900 / 901

Kenwood

NXR-900 / 901

The KENWOOD NXR-900 and NXR-901 NEXEDGE® 800/900 MHz digital & analog repeaters allow users to replace existing 800MHz & 900MHz systems and are designed for use by utilities, SMR operators, transportation, government agencies and critical infrastructure. All offer NXDN® conventional, conventional IP, trunked single site and multi-site network capabilities and operate in 6.25 and 12.5 kHz digital modes.

  • Fully Supports NXDN Type-C Trunking & 2nd Generation as well as NXDN Conventional
  • Mixed Digital & FM Analog Operation
  • Built-in IP Interface for sending remote control command in both conventional and trunking modes
  • 30 Channel Scanning Base Station (Conventional Mode)
  • 0.5-5 W, 5-25 W RF/Exciter Output
  • 360 mW Exciter Output
  • Repeater Operation
  • LED Status Indicators
  • 6 Programmable Function Keys
  • 0.3 Watt Front Panel Speaker
  • 3 Watt External Speaker Audio
  • Volume Control
  • Program/Modem Interface
  • Remote Termination Interface
  • Programmable AUX I/O's
  • DTMF Front Panel PF Key Control
  • DTMF AUX Output Control
  • DTMF AUX Input Monitoring
  • KPG-109D Windows® FPU
  • Flash Firmware Upgrading

No Accessories List at present

Please Contact Us for more information

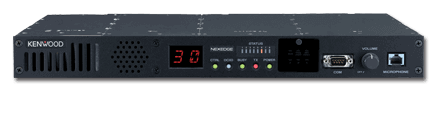

  • NXR-900K Repeater, Digital, RX 806-825 MHz, TX 851-870 MHz

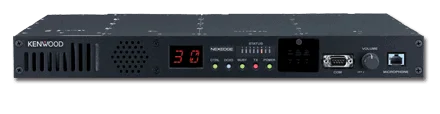

  • NXR-901K Repeater, Digital, RX 896-902MHz, TX 935-941MHz
